Vehicle technical parameters | ||||||||

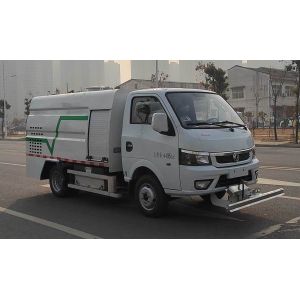

product name | Pure electric road surface maintenance vehicle | product model | HTT5041TYHBEV | |||||
gross mass (Kg) | 4495 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 1485 | outline dimension (mm) | 5235,5595×1820×2240,2275 | |||||
curb weight (Kg) | 2880 | axle weight | 1500/2995 | |||||
Number of cab members (person) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 17/15,23/15 | Front suspension / rear suspension (mm) | 1176/1259 | |||||
wheel base | 3858,3308,3850,3300,3000 | Top vehicle speed (Km/h) | 90 | |||||
Chassis technical parameters | ||||||||
Chassis model | EQ1041TACEV3 | Chassis brand | Pure electric truck chassis | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 185R15LT 8PR | |||||||
Number of steel plate spring sheets | 3/5 | |||||||
front gauge (mm) | 1395 | rear track (mm) | 1242 | |||||
Fuel types | Pure electric | ABS | have | |||||
Chassis wheelbase | 5300mm | Battery brand | Ningde era | |||||
Rated / peak power (kW) | 55/110 | Rated power of the mounted motor | 10kW | |||||
Upload consumes power per hour | 40KWH | System rated voltage | 386.4V | |||||
rated capacity | 160Ah | Battery level (kWh) | 128.86 | |||||
Driving range (km) | 280 | Charging time (min) | 30 | |||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
TZ210XSZ03 | 110 | 150 | ||||||
