    Automatic Retracting Spring Driven Hydraulic Hose Reel With 30Mpa Max Pressure 1/4" Dual Hose 18M 21M 25M Customized

    Ask Lasest Price
    Brand Name : HUATE
    Model Number : HT.GKA
    Price : $950/sets 1-9 sets
    Delivery Time : 7-30 days
    Payment Terms : T/T
    Supply Ability : Meet large-scale orders
    • Product Details
    • Company Profile

    Automatic Retracting Spring Driven Hydraulic Hose Reel With 30Mpa Max Pressure 1/4" Dual Hose 18M 21M 25M Customized

    Products Description

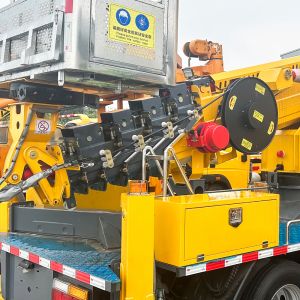

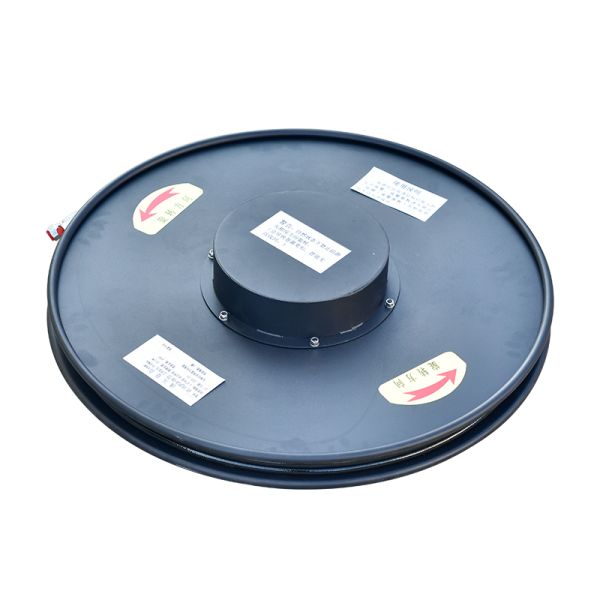

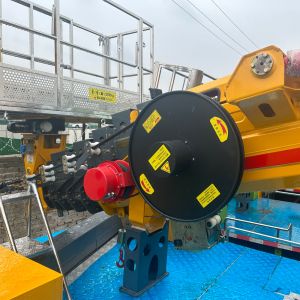

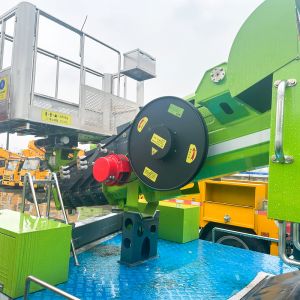

    Hydraulic hose reels with factory-lubricated one-piece power spring makes installation safer and maintenance easier. Ideal for kinds of Cranes and forklifts. Stainless latch parts are available as a standard option. All of our products can be customized with stainless steel. We also accept non-standard customization. ● Heavy duty. All-steel construction. ● For two single hoses with bigger diameter and bigger usable hose length, with additional middle flange ● Available in Left or Right version ● Fixation by mounting flange ● Self winding by permanent spring force ● Full flow shaft swivels. ● Superior performance:Swivel and reel ball bearings reduce torque load on power spring for smooth retraction and durability. ● Corrosion resistant: Sealed bearings prevent contamination and minimize maintenance. ● Easy installation and maintenance:Factory lubricated one-piece power spring cassette make installation safer and maintenance easier. ● Adjustable and Versatile:Guide arm adjust to wall,floor,vehicle, overhead positions. Narrow design allows for maximum use of available space.
    Weight
    41 kg-49kg
    Hose I.D.
    1/4"
    Hose O.D.
    1/2"
    Hose Length
    15.5-25M Customized
    Pressure
    30 Mpa
    Hose End
    3/8" NPT(M)
    Inlet
    3/8" NPT(M)
    Reel Outlet
    M14 x 1.5 H NPT(M)
    Hose Included
    Yes
    Operate Temperature
    -40 to 80 Degree Celsius
